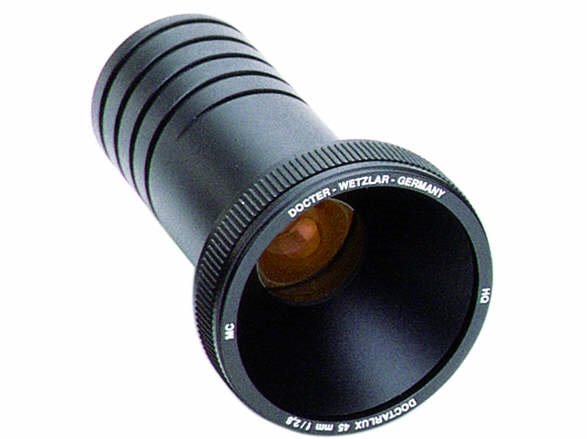

K series 45mm lens
PLEASE NOTE: This item is not currently available for sale - it may have recently been sold, discontinued or subject to temporary supply problems.
Not suitable for Aura
This item is NOT compatible with the OPTI Aura projector.
Very high quality Optikinetics lens for the K series of projectors. Note that the K series lenses are encapsulated in a metal enclosure (not plastic as per the Solar series) and specially designed to cope with the higher temperatures associated with high power projectors.
Provides a very wide angle projection. Suitable for use with the Solar 575, K2, K2+ and K4 projectors. Can also be used with the Gobo range of projectors using the Lens Mount (GS6100).
Example approximate projection sizes for given projection distances with this lens:
@ 1m distance, image diameter ~ 0.9m
@ 2m distance, image diameter ~ 1.8m
@ 3m distance, image diameter ~ 2.7m
@ 4m distance, image diameter ~ 3.6m
@ 6m distance, image diameter ~ 5.3m
@ 8m distance, image diameter ~ 7.1m
@ 10m distance, image diameter ~ 8.9m
@ 12m distance, image diameter ~ 10.7m
